Installation
TonyView is engineered for straightforward, code-compliant installation by experienced professionals. Use the installation guide for full technical details, or explore the interactive 3D model to see each stage of installation come together.
TonyView Installation Overview
Key Requirements
- Structural support: Substrates, headers, and framing must be level, plumb, and designed to carry loads. TonyView is not a shear element.
- Water-managed walls only: TonyView must be installed in a properly water-managed wall system. Barrier systems (such as EIFS) require additional approved moisture control.
- Professional installation recommended: Improper installation may result in structural failure, water intrusion, or warranty voidance.
Installation Summary
- Prepare and level the substrate; solid-block the corner framing.
- Headers must meet at the corner with proper alignment (typically a 45° miter).

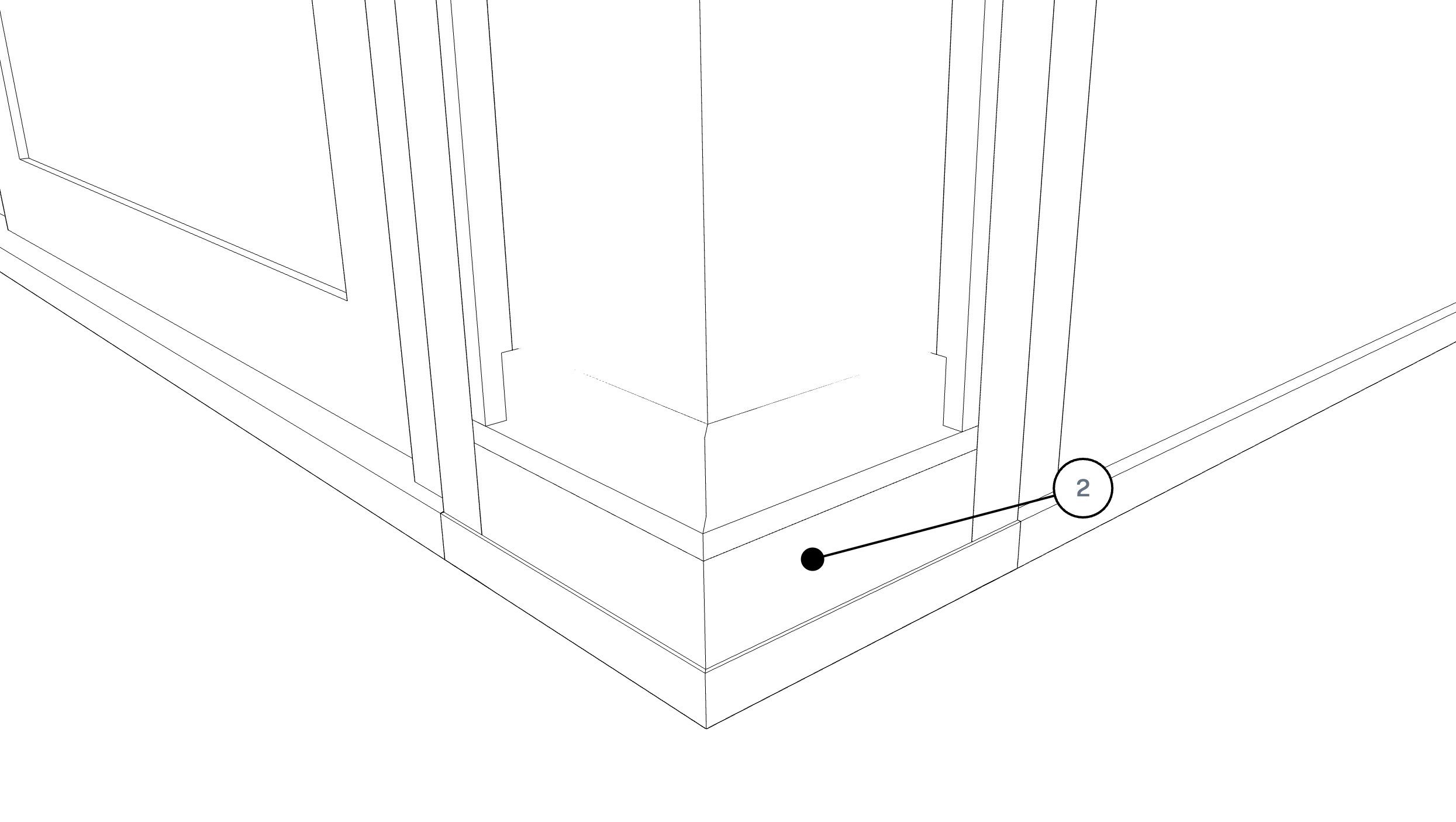

- Install the stainless steel sill shoe over sealant.

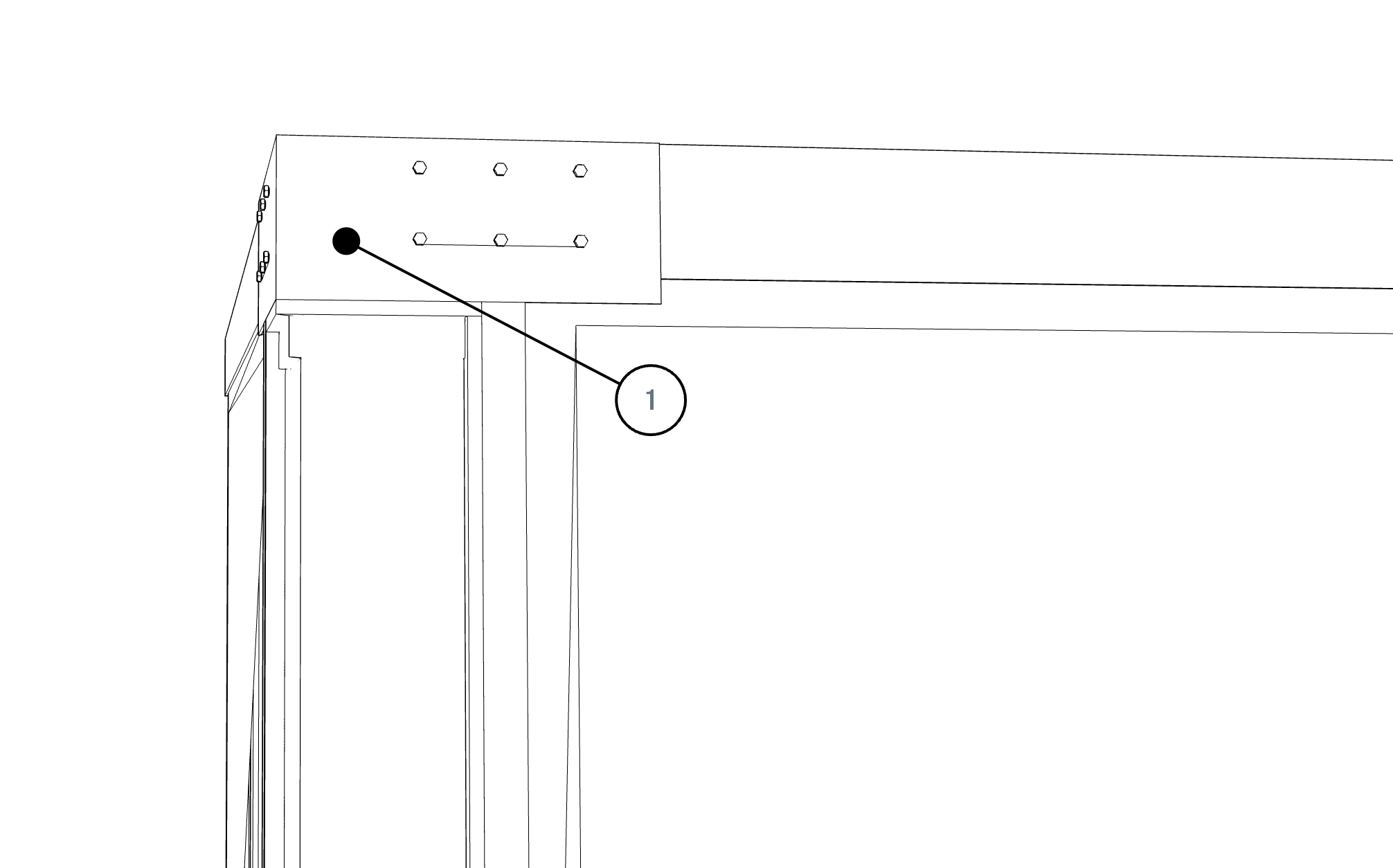

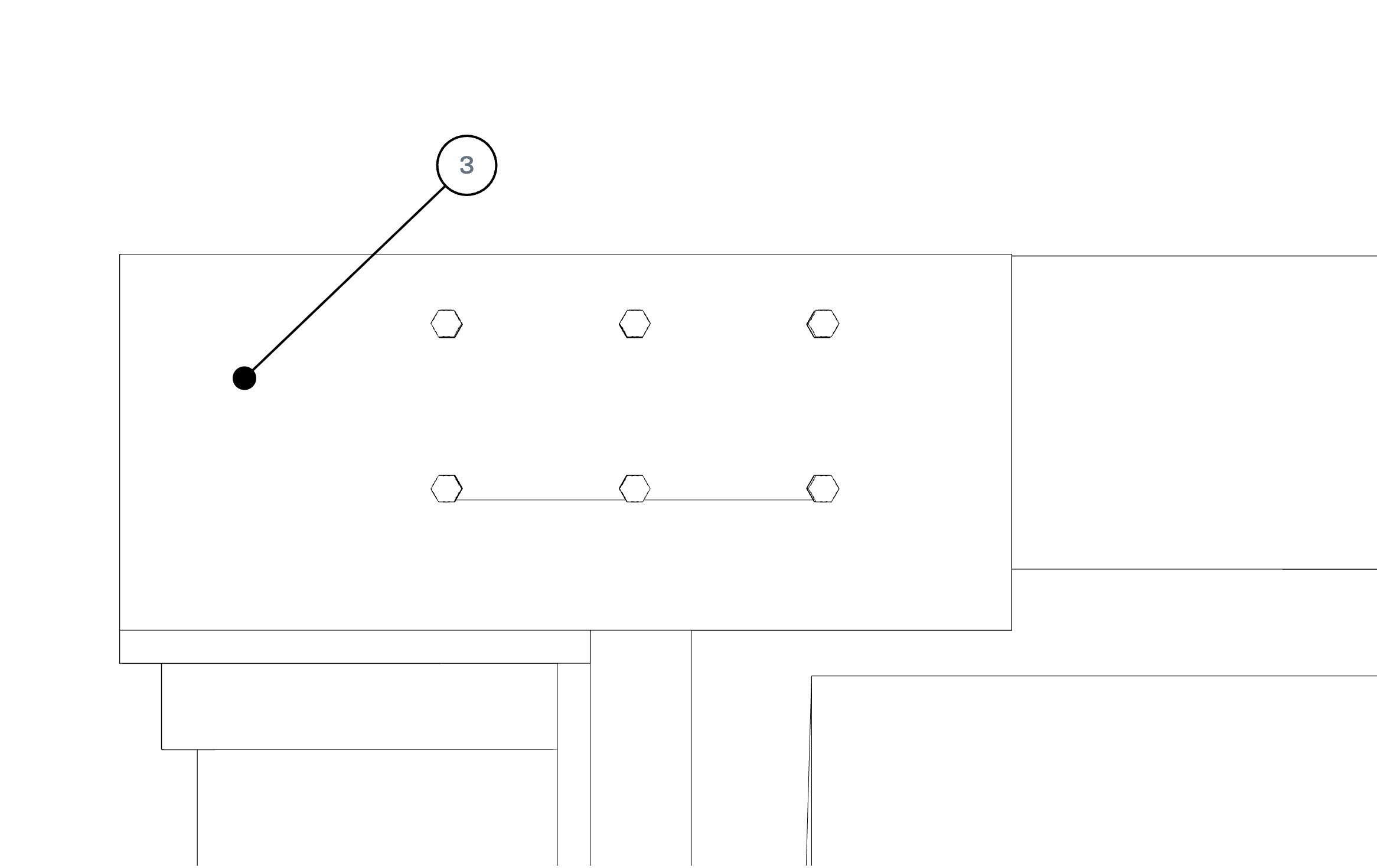

- Set the TonyView unit, shim as required, and secure to the structural brackets and sill.
- Gradually transfer load from temporary shoring to the TonyView unit while maintaining plumb and level.
- Fully tighten all fasteners only after final alignment is confirmed.
Waterproofing (Critical for Warranty)
- Install sill pan flashing first, then work upward.
- Use self-adhered membrane (SAM) to fully integrate TonyView with the building’s weather barrier.
- Flash vertical posts and head per standard high-performance window practices.
- Complete counterflashing and top flashing to direct water away from the system.
Final Notes
- Protect the unit during construction.
- Verify all fasteners and seals before removing bracing.
- Follow approved sealants, flashing methods, and detailing exactly as shown in the full guide.
- For full installation instructions, diagrams, and warranty requirements, refer to the TonyView Installation Guide.
